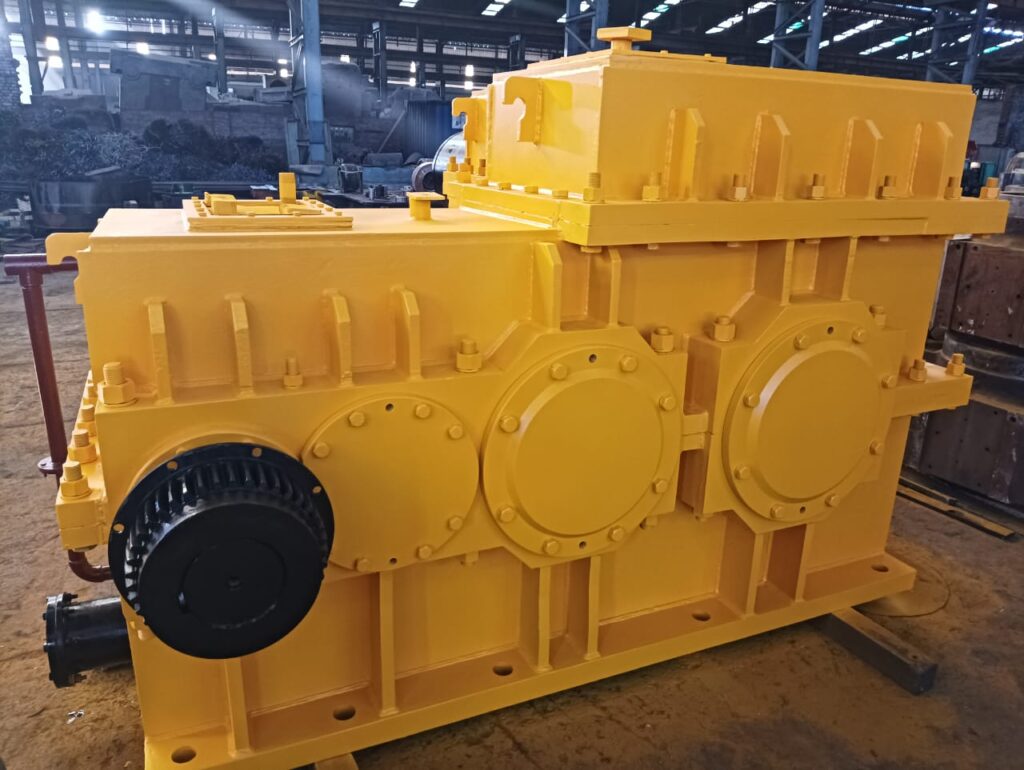

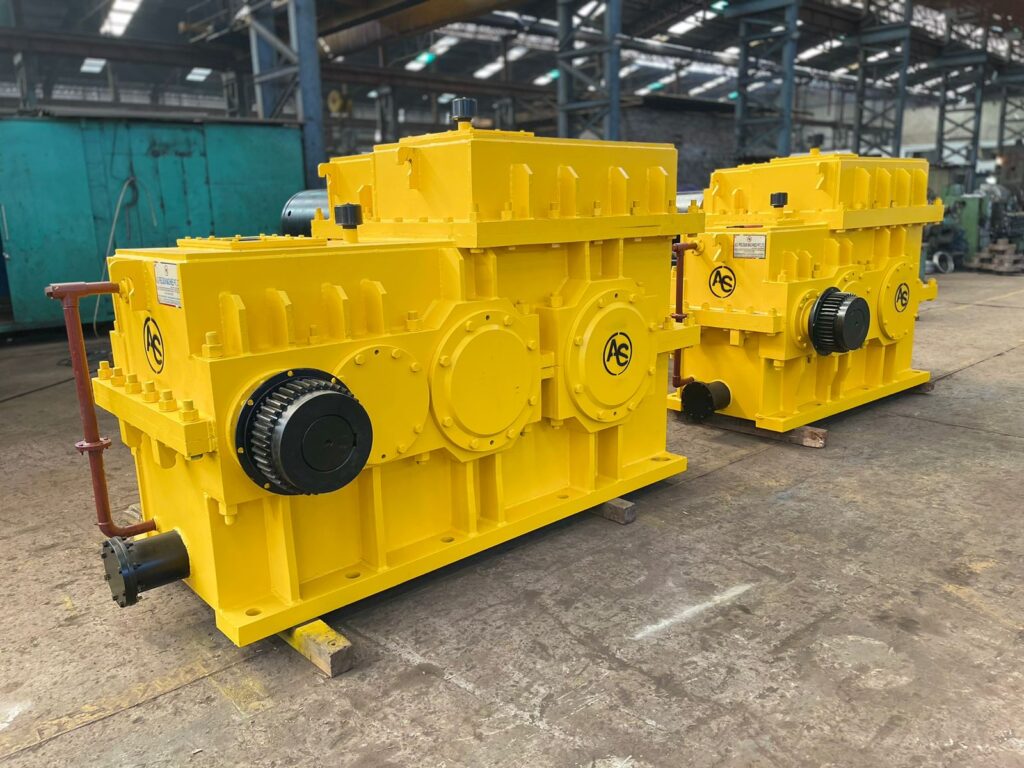

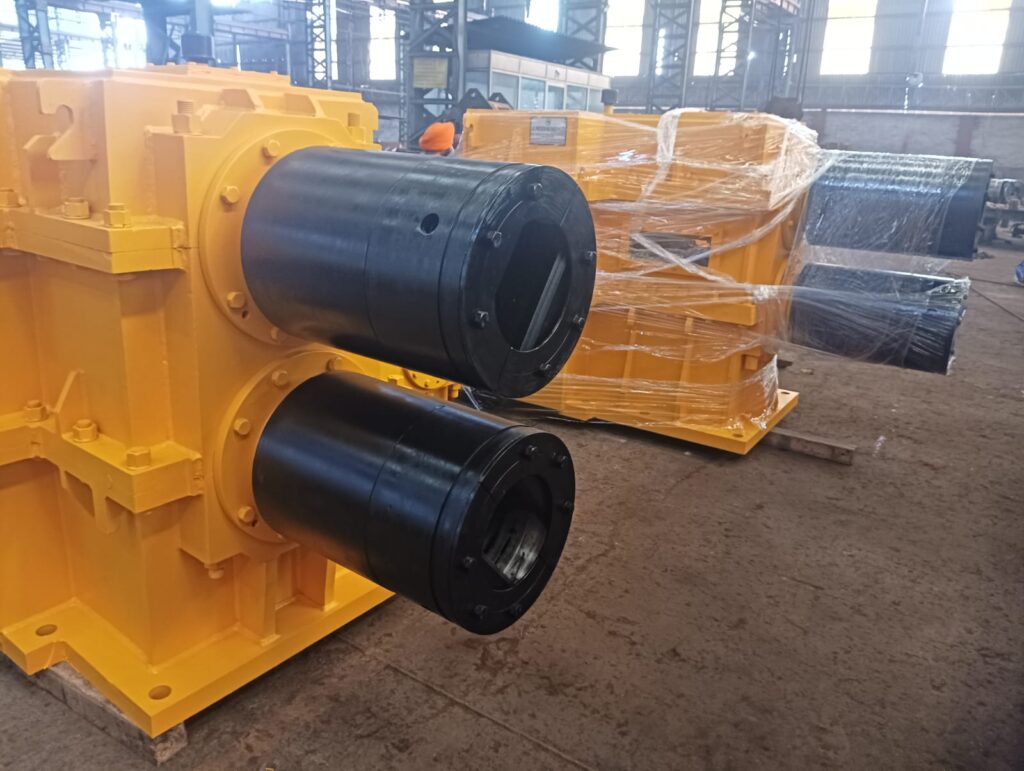

Gear Box Cum Pinion Stand

Single Stage| Double Stage| Multi Stage & Beval Helical Gear.

Applications:

  • Reduction Gear Boxes.
  • Reduction Cum Pinion Gear Boxes for mill Stands.
  • Gear Boxes for Shear and Saws.
  • Gear Boxes for Cooling beds and other auxiliary equipment like material handling equipment.

  The gears are manufactured from case hardening steels like

  EN353; Din 20 MnCr5 (1.7147),

 17CrNiMo6(1.6587),

 18 CrNi Mo7-6;

  SAE 8620.

 Case hardness 60+-2 HRC and shafts from En 9/EN 19 Steels for long life and   trouble free service.

Gear Boxes & Pinion Stand

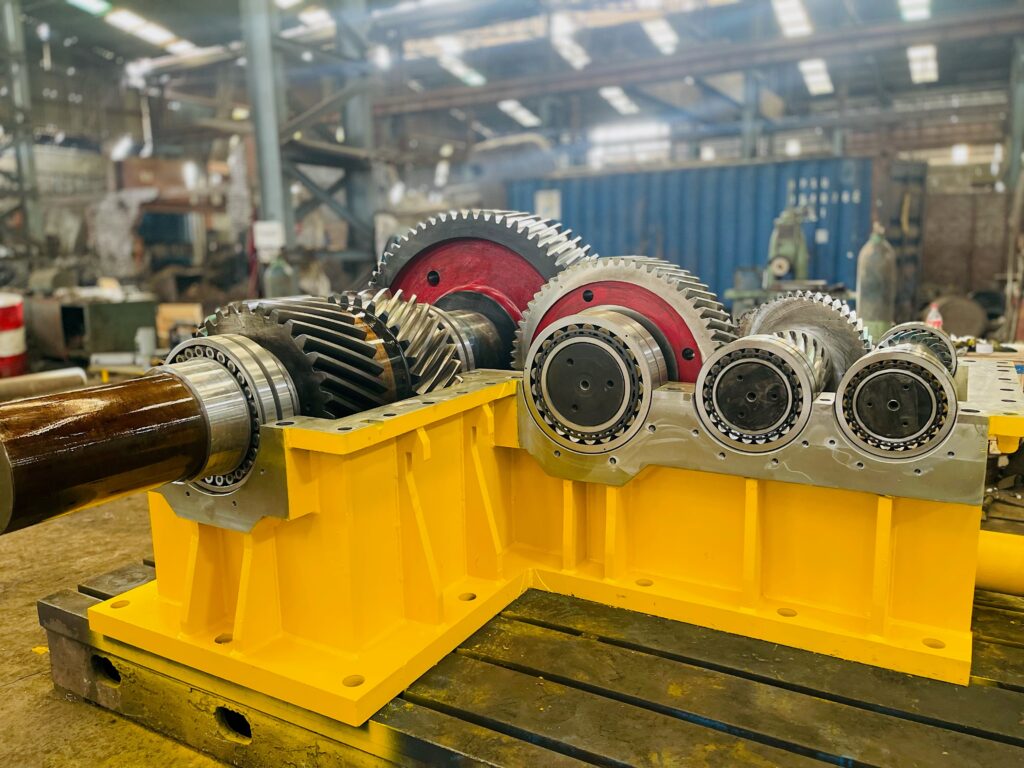

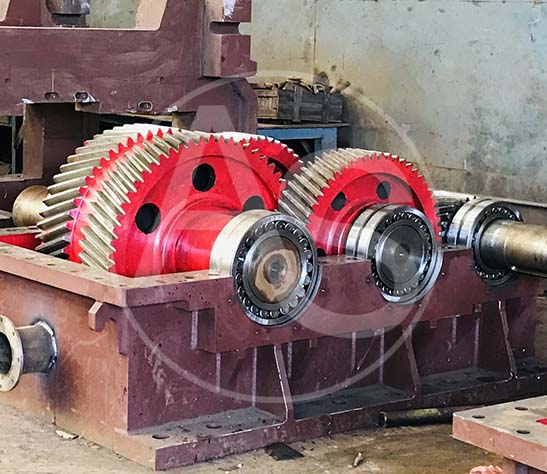

We manufacture high precision and robust gearboxes to provide drive to the rolling mills. The gearboxes which consist of fabricated frames accurately machined housing the gear internals which are supported on anti friction bearings. The gears are lubricated by appropriate gear oil for long life and efficiency. The gear materials are of two types i.e. Volume hardened and case hardened gears as per the requirement of the customer.

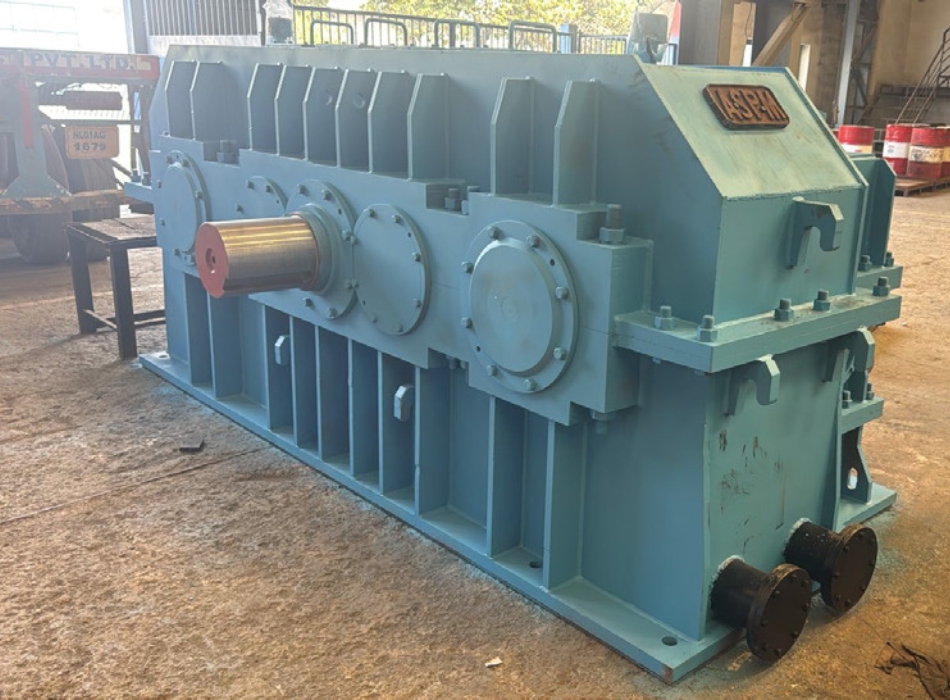

Reduction Gear Boxes

We are manufacture and supply gear boxes for rolling mills which can be single stage, double stage or multistage gearboxes having single and multiple output as per the requirement of the client.

Reduction Gearboxes are used to reduce and input speed to a slower output speed and more output torque. The load range is from 50 HP upto 5000 Hp Drives. The gear types are spur. Single & Double Helical Gears,  Beval Gears, Worm Gear Box upto 2500mm Dia.

Speed Increasers

A Speed Increaser gear box is generally installed in Bar Mill in between intermediate Mill Stands to increase the output speed of the rolled product. . These are Steel Fabricated gear boxes.

The Gears & Pinions are forged 18CrNiMob-7/case Carburized steel hardened to 60±2 HRC, shrunk fitted on En-9 forged steel shafts. The gears and pinions will conform to DIN 3 / 4 Standard. Single helical teeth hardened and Profile Ground on CNC Gear grinder machines to give high contact ratio and low noise or vibrations.

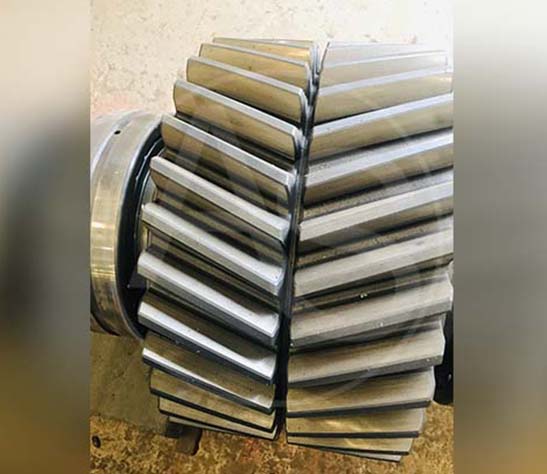

Gear Box 3

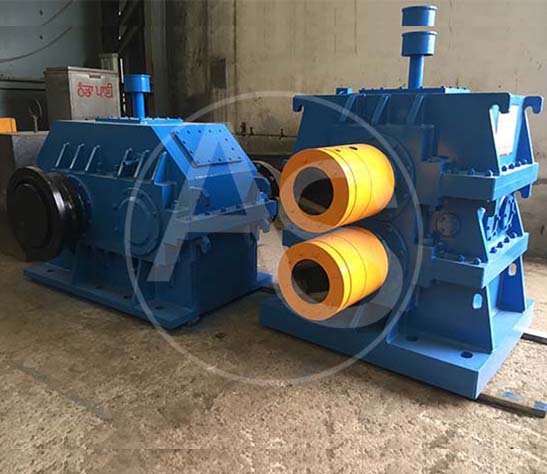

Gear Box 2
